Lab 5 Prelab - Geology and Physiographic Features
Read Ch. 12 - Geology Applications

Soils
  A. Bare soil
   1.  Lighter tones are generally indicative of one or more of the following:
    a)  low soil moisture  b)  low organic content
    c)   finer textured soils  d)  higher topography

   2. Darker tones are generally indicative of one or more of the following:
    a)  high soil moisture  b)  high organic content
    c)   coarse textured soils  d)  area lower topographically

  B. Soil moisture is most easily distinguished using IR film.

  In general, the coarser the stream pattern, the more resistant is the bedrock.

Drainage Patterns

a) dendritic
b) trellis
c) radial
d) rectangular
e) centripetal (sinkhole)
f) deranged

Geomorphology from Space
http://daac.gsfc.nasa.gov/DAAC_DOCS/geomorphology/GEO_HOME_PAGE.html

Geology Terminology http://walrus.wr.usgs.gov/infobank/programs/html/school/keywords.html

Printable Version (252kb)

Click to Enlarge - Dendritic Drainage Pattern
Click to Enlarge - Trellis Drainage Pattern
Click to Enlarge - Radial Drainage Pattern

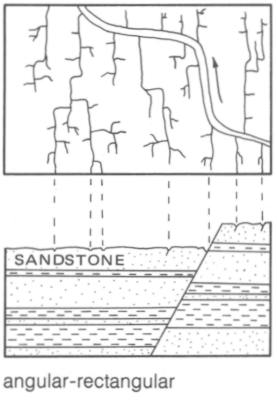

Click to Enlarge - Angular Drainage Pattern
Click to Enlarge - Sinkhole Drainage Pattern
Click to Enlarge - Deranged Drainage Pattern
